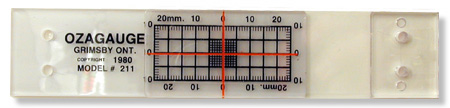

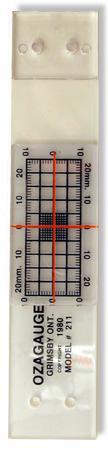

OZAGauge Classic
The Original Crack Monitor
Developed in 1980, the OZAGauge was designed out of necessity and demand. It's accuracy is guaranteed! Other companies have tried to copy it, but engineers, contractors, building inspectors, and home owners keep coming back.
The OZAGauge is made of sturdy, lightweight LEXAN¨ - therefore, it's shrink resistant!
Use the OZAGauge for:
Pre & post construction inspections
Interior and exterior surveys of structures located near blasting, demolition and construction
Hazard assessment and monitoring
The OZAGauge is
EASY TO USE:
- accurate
- inexpensive
- interior-exterior cracks
- Engineers
- Contractors
- Building Inspectors
- Insurance Agents
- Claims Investigators
- Demolition Experts
- Drilling & Blasting Crews
Use the OZAGauge for:
Pre & post construction inspections
Interior and exterior surveys of structures located near blasting, demolition and construction
Hazard assessment and monitoring
The OZA Gauge comes with blank monitoring forms.
2) Determine where you wish to use the OZAGauge.
3) Remove the OZAGauge from its packaging.
4) Use a combination of Epoxy and screws to mount both sides of the OZAGauge to the wall.
5) Ensure that the red cross-hairs line up properly at center (0x, 0y axis). A small piece of tape has been applied to the top and bottom of the OZAGauge to help keep the cross-hairs aligned. Once the OZAGauge is mounted, cut this tape to allow both sides of the gauge to move freely.
6) Monitor the OZAGauge regularly. Determine a schedule and use the blank forms provided to record the results.
The OZAGauge comes in sets of ten. Contact our office to order your box today. .
